Golden Motor TOSEVEN DM02 Mid Drive Conversion Kit delivers high-performance cycling efficiency, seamless power, and durability for your e-bike adventures.

DM02 Ebike Mid-Drive Motor: Equipped with Torque Sensor & Cadence Sensor. Up to 500W Rated Power Output. Output Torque of 90Nm. Compatible With 24,36, 48, 52,60 Volts Battery Range.

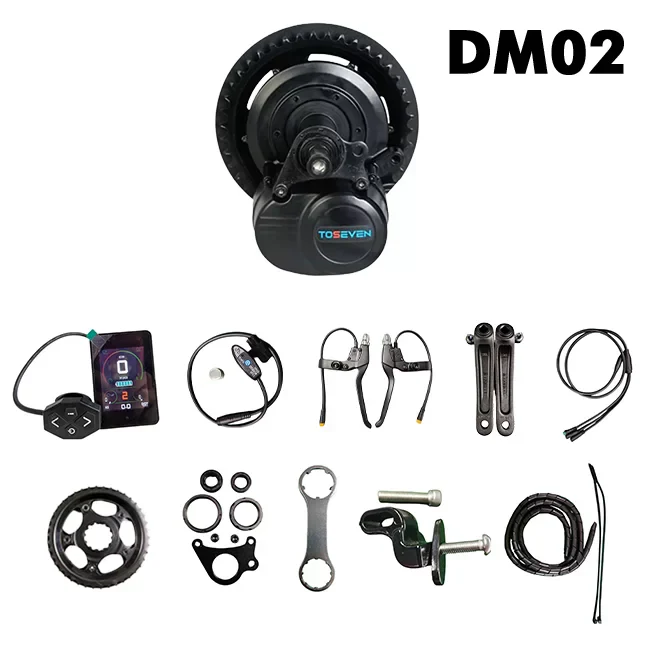

Each Motor Kit Includes:

Chainring (42T or 46T)
Wiring harness
Crank arms with bolts
Installation wrench
Thumb throttle
Speed sensor
Anderson power connector
Lights wire connector
Hardware packet

ENHANCED PERFORMANCE

Better heat dissipation ensures cooler and longer operation, optimizing E-bike motor efficiency. Enhanced power output ranging from 250W to 500W for dynamic e-bike performance. High speed ratio (53) provides swift starts and impressive climbs.

INTEGRATION AND DESIGN

Seamless integration with 95% of standard bike frames for easy installation of E-bike mid-drive motors. Engineered for a smooth, comfortable journey, resembling the traditional bicycle feel. Crafted from robust Aluminum alloys, ensuring durability in various environments. Trusted by top electric bicycle manufacturers for enduring performance. Upgrade Your E-bike Today with DM02 Mid-Drive Motor! Attention: To ensure optimal functioning and longevity, we highly recommend using the motor within the prescribed voltage range. Any unauthorized alterations beyond this range may void the warranty coverage.

ADDITIONAL INFORMATIONS

Mounting Position	Central
Shell Color	Black / Silver
Rated Power	250W – 350W – 500w
Rated Voltage	36V/48V
Wheel Size	20’~29′
Max. Speed	100rpm
Max. Output Torque	90N.m
Speed Ratio	53
Assist Ratio	2.5-3
Efficiency	＞80%
Sensor Style	Cadense/Torque
Teeth Species	42T(or 34T/36T/ 38T/46T/52T)
Noise Level	＜50dB
Work Temperature	-20℃-50℃
Motor Weight	3.6-3.9Kg
Waterproof Level	IP65

   ① BB=68   CL=50(or 59)
         Model:   DM02-500     DM02-350






   ② BB=73   CL=52.5(or 61.5)
         Model:    DM02-500     DM02-350



    ③ BB=100    CL=66(or 75)
          Model:     DM02L-500      DM02L-350







    ④ BB=110    CL=71(or 80)
          Model:     DM02L-500      DM02L-350
