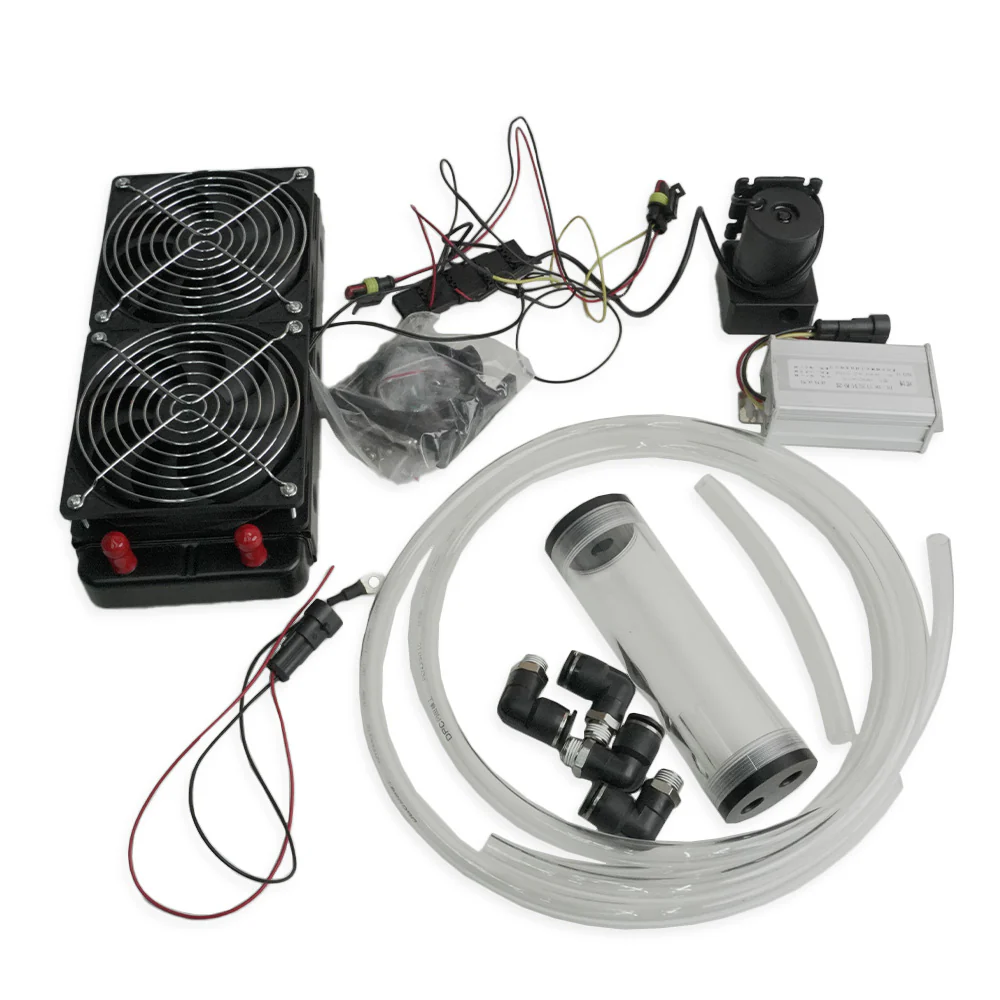

Efficient Liquid Cooling System designed for high-performance motors and controllers, enhancing thermal management and ensuring optimal operation in demanding conditions.

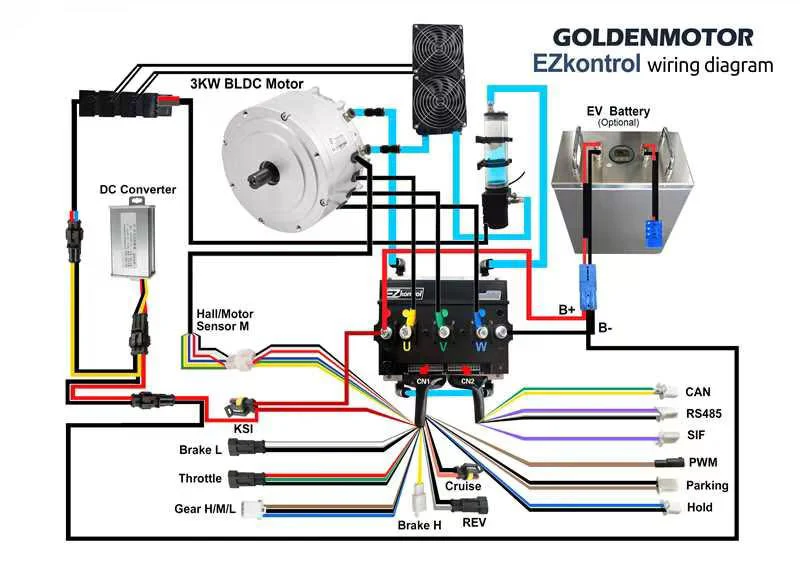

Plug and play liquid cooling system with the Golden Motor BLDC motors and EZkontrol motor controllers.

Liquid Cooling System Specs

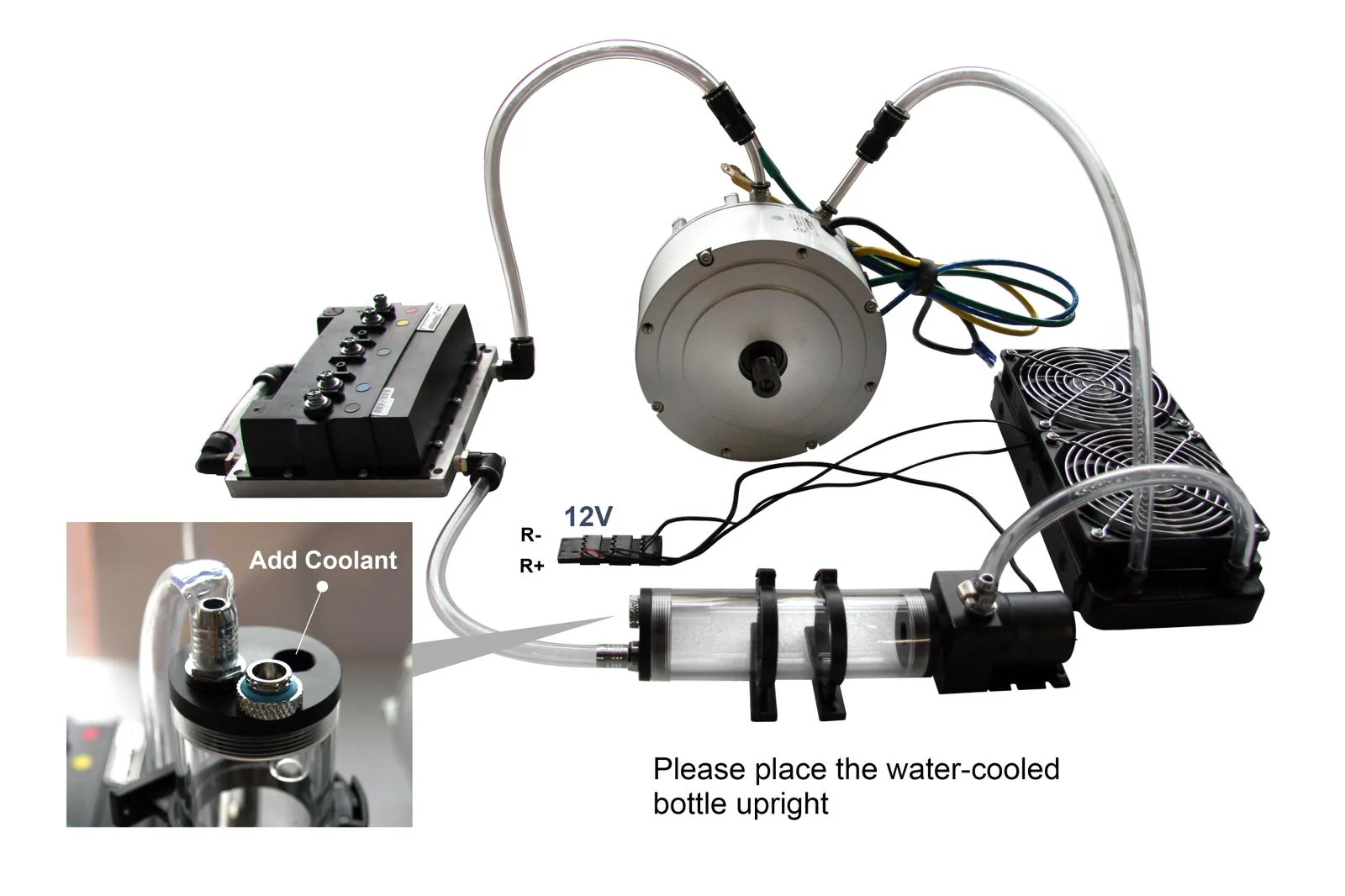

Installation and setup video

Compatible System:

1. 3 kW BLDC Motor Liquid Cooled
A compact and efficient motor suitable for electric vehicles, marine, and industrial applications.

Voltage Options: 48V / 72V

Rated Power: 2–3 kW

Peak Power: 6 kW

Speed: 3000–5000 rpm

Weight: 8 kg

Efficiency: >90%

IP Rating: IP65



2. 5 kW BLDC Motor Liquid Cooled
Ideal for electric cars, motorcycles, tricycles, golf carts, forklifts, and boats.

Voltage Options: 48V / 72V / 96V / 120V

Rated Power: 3–7.5 kW

Speed: 2000–6000 rpm (customizable)

Weight: 11.35 kg

Efficiency: 91%

IP Rating: IP65



3. 10 kW BLDC Motor Liquid Cooled
Designed for electric vehicles, marine, and industrial applications requiring higher power.

Voltage Options: 48V / 72V / 96V / 120V

Rated Power: 8–20 kW

Speed: 2000–6000 rpm (customizable)

Weight: 17.7 kg

Efficiency: 91%

IP Rating: IP65



4. 20 kW BLDC Motor Liquid Cooled
Suited for high-performance electric vehicles, marine use, and industrial applications.

Voltage Options: 72V / 96V / 120V / 144V

Rated Power: 20–25 kW

Peak Power: 50 kW

Speed: 3200–6000 rpm

Weight: 39 kg

Efficiency: >90%

IP Rating: IP65

5.Golden Motor GMX HyperTorque 11Kw Axial Flux Motor.
