Elevate your e-bike experience with the Bafang DP-C010, a state-of-the-art display meticulously designed for Bafang mid-drive systems utilizing the CAN bus protocol. Its expansive 4.0-inch high-resolution TFT screen ensures unparalleled clarity, providing all essential ride metrics at a glance.

Bafang DP-C010 Display (CAN Bus Protocol)

User Manual

Key Features:

• CAN Bus Communication: Seamlessly integrates with Bafang systems that utilize the CAN bus protocol, ensuring efficient and reliable performance.

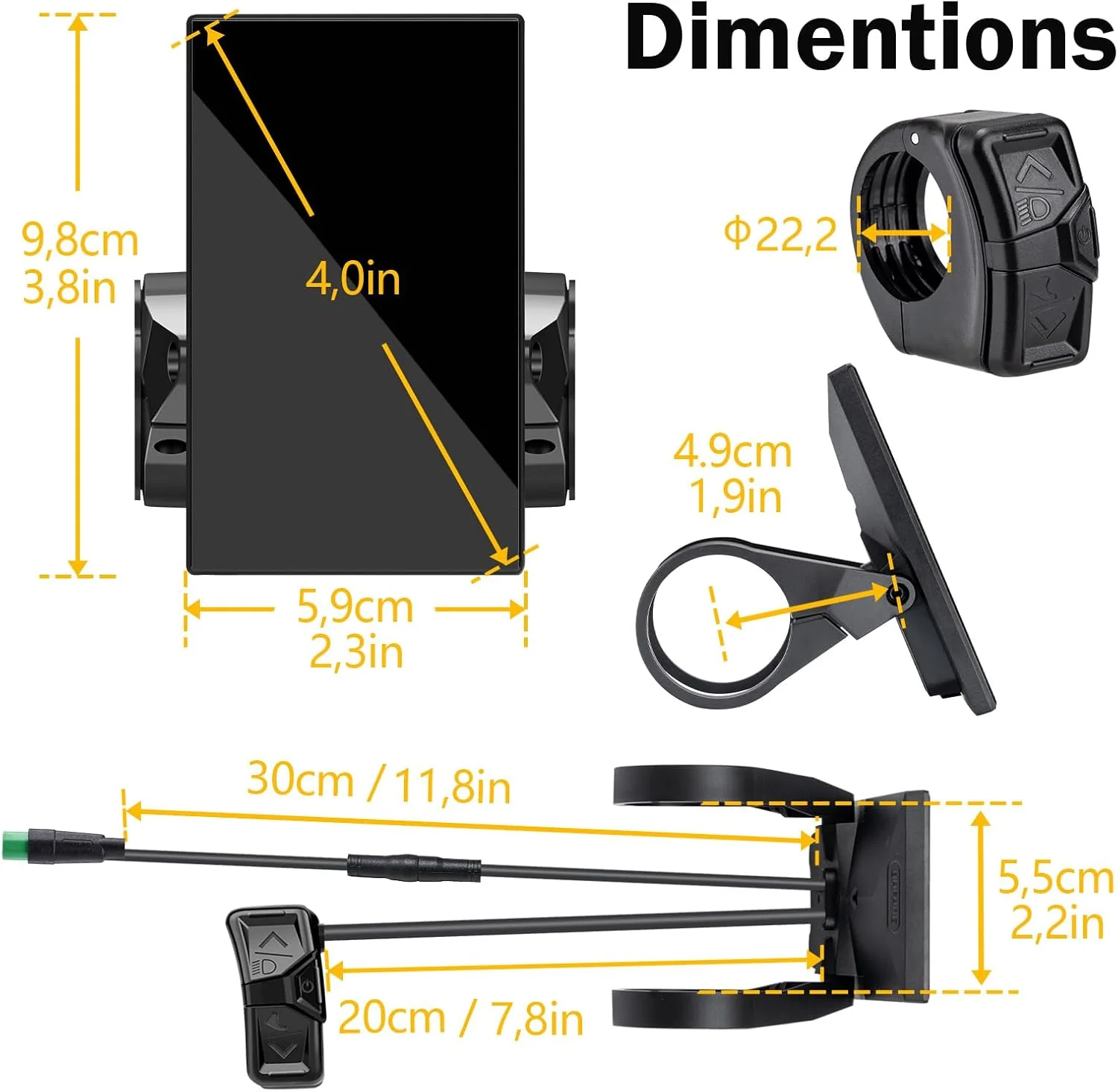

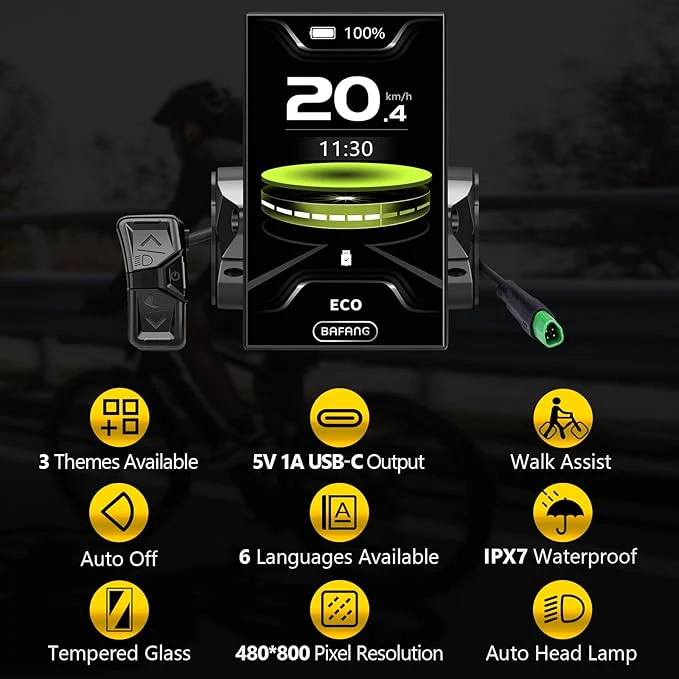

• 4.0” High-Resolution TFT Display: Enjoy a crisp 480x800 pixel resolution, delivering sharp visuals in all lighting conditions. The tempered glass construction enhances durability and scratch resistance.

• Automatic Backlight Adjustment: The display intelligently adjusts brightness based on ambient light, ensuring optimal visibility whether you’re riding under the midday sun or during evening hours.

• Comprehensive Riding Metrics: Monitor real-time speed (current, maximum, and average), battery capacity, assist levels, trip distance, total distance (ODO), remaining range, motor power output, and energy consumption (calories).

• Customizable Assist Levels: Choose between 4 or 6 pedal-assist modes to tailor your riding experience, from energy-saving to high-performance settings.

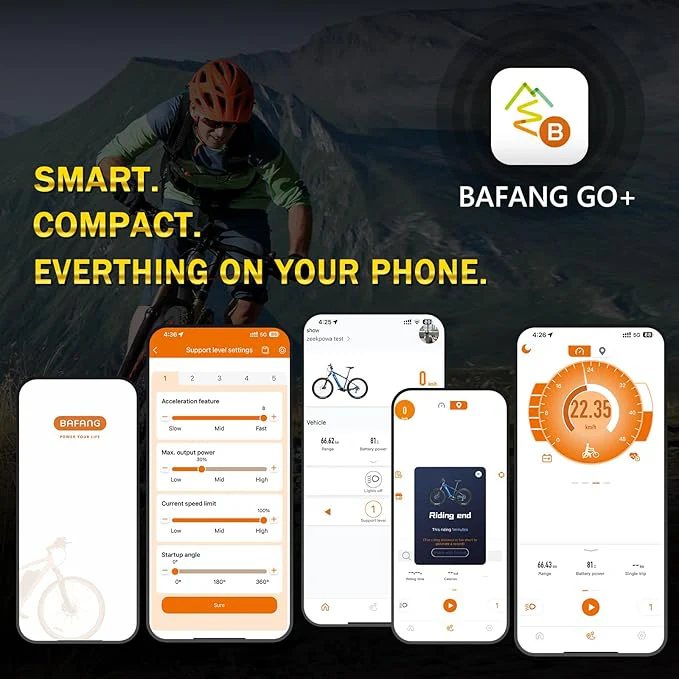

• Bluetooth 5.0 Connectivity: Effortlessly connect to the Bafang Go+ app, unlocking advanced features such as navigation mapping, ride data analysis, and personalized settings.

• USB Charging Port: Equipped with a 5V 1A Type-C USB port, allowing you to charge your mobile devices on the go, ensuring you stay connected during your rides.

• Robust and Weather-Resistant: With an IP66 waterproof rating, the DP-C010 is built to withstand diverse environmental conditions, offering protection against dust and heavy rain.

• Multi-Language Support: Catering to a global audience, the display offers six language options: English, German, Dutch, French, Italian, and Czech.

• User-Friendly Interface: The intuitive button layout ensures seamless navigation through settings and ride data, enhancing overall riding convenience.
