LG 52V 12.8Ah DP-5 Battery Pack

Included: Battery Cradle

Specification	Details
Battery Type	Lithium-ion Battery
Watt Hours	665 Wh
Dimensions	368*90*96mm 14.44*3.54*3.77 inches
Configuration	14 Series 4 Parallel (14S4P)
Battery Cells	LG MH1
Battery Weight	3.5 ± 0.15 kg
Built-in BMS	30A Continuous
Maximum Charge Voltage	58.8 V
Discharge Cut-off Voltage	39.2 V
Charge Cycles	≥500 cycles
Charger	52V 3A Charger
Charge Temperature	0 – 45 °C
Discharge Temperature	−10 – 40 °C
Output Connector	XT90
Charge Port	Reennew Mini 3-Pin

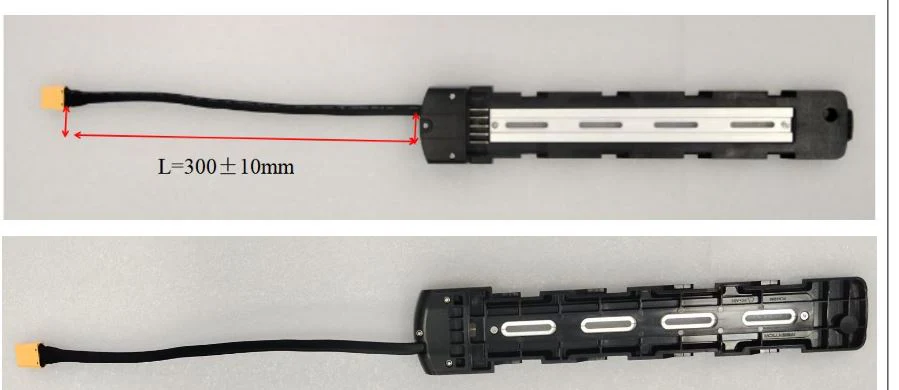

Battery Case	DP-5 Slide Rail Case

Battery Cutout

Attention

1. Do not dispose in fire or heat.
2. Do not puncture, damage and disassemble.
3. Charge with Li-ion exclusive charger.

How to maintain the battery?

The battery should be stored in clean, dry, ventilated, dark environment. When unused, keep it at half charge and recharge it every 3 to 6 months.

Charging Instructions

The charger’s indicator light will display red while the battery is charging. Once the battery is fully charged, the indicator will change to green.

How to prolong your lithium ion battery?

Recharge your batteries before they are completely dead.

After every 30 charges, allow your lithium based battery to completely discharge before recharging.

What about warranty?

• We provide 12 months warranty
• Product quality guaranteed by PAIC insurance
